Introduction

GW series roll die cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it’s widely used in printing ,packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic, block plate, photoelectric correcting deviation system, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety and reliability.

sample

sample

sample

sample

sample

sample

sample

Paper cup samples

Sample

Samples

Worm Gear Structure

Perfect worm wheel and worm transmission system ensures the powerful and steady pressure and makes the cutting accurately while the machine runs with high speed, has features of low noise, smooth running and high cutting pressure.

Main base frame, moving frame and top frame are all adopts high strength Ductile Cast Iron QT500-7, which has features of high tensile strength, anti-deformation and anti-fatigable.

Equipment Display

Equipment Display

Equipment Display

 Lubri cation system

Adopts forced lubrication system to ensure main driving oil supply regularly and reduce frication and prolong the machine life, machine will shut down for protection if oil pressure is low. The oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil.

Equipment Display

Equipment Display

Equipment Display

 The main part

The die-cutting force is provided by a 7.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.

Pneumatic clutch brake: through adjust the air pressure to control the driving torque, low noise and high brake performance. The machine will shut down automatically if overload happened, response sensitive and fast.

Equipment Display Equipment Display

Electrical control pressure

accurate and fast to achieve die-cutting pressure adjustment. The pressure is automatic adjusted through the motor to control the four feet by HMI. It is very convenient and accurate.

Equipment Display Equipment Display

Track

It can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures. Simply set the feed length though the micro-computer controller to die-cut the products without words and figures.

Equipment Display

Electrical box

Motor: Frequency converter controls the main motor, with features of low energy and high efficiency.

PLC and HMI: screen display the running data and status, all of the parameter can be set through the screen.

Electrical control system:adopts micro computer control,encoder angle detect and control, photoelectric chase and detect, achieving from paper feeding,convey, die-cutting and delivering process automatic control and detect.

Equipment Display

Correction unit

This device is controlled by motor, which can fix and adjust the paper in a correct position(left or right)

Equipment Display

Die cutting department

Die cutting department adopts pneumatic lock version of the device to avoid come off from the machine.

Die cutting plate: 65 Mn steel plate heating treatment, high hardness and flatness.

Die cutting knife plate and plate frame can be taken out so that it can save plate-changing time.

Equipment Display Equipment Display

Paper blocked alarm

the alarm system makes the machine stop when paper feeding blocked.

Equipment Display

Unwinding unit

Adopts chain type pneumatic roller unwind, tension controls unwind speed ,and that is hydraulic, it could support at least 1.5T, Max. roll paper diameter is 1.6m.

Equipment Display

Load material

Electric roll material loading, which is easy and fast. The two rubber covered rollers are controlled by traction motor, so it is very easy to make paper go forward automatically.

Equipment Display

Paper leveling unit

Automatically fold and flatten the cornering materials at the paper core. It realized the multistage adjustment of the folding degree. No matter how bent the product is ,it can be flatten or refolded towards other directions.

Equipment Display

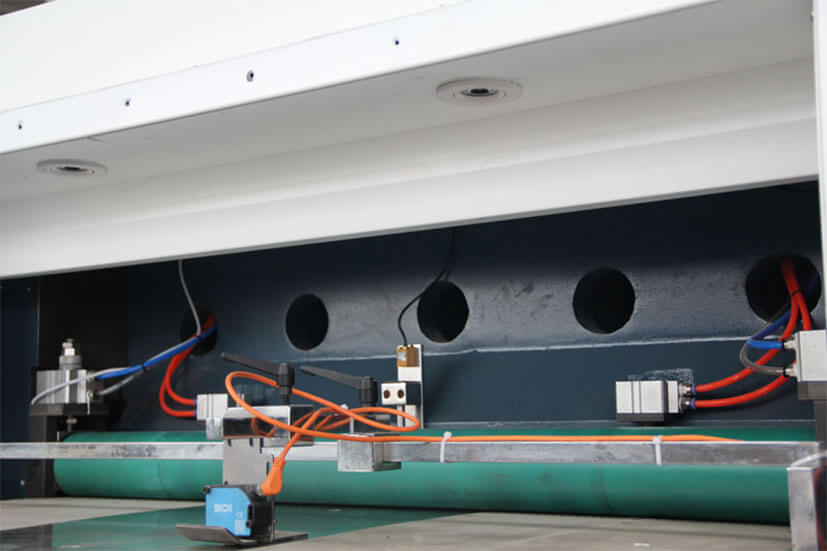

Feed material

the photoelectric eye tracking system assures the synchronization of material feeding and die cutting speed.

Equipment Display

Delivery unit

By the action of the entity induction switch, finished product will be automatically lowered down to remain the height of the pilling paper unchanged, during the whole die-cutting process, manual paper-taking is not needed.

Equipment Display
