High Speed Cutting Machine

QD-350 Microcomputer Controlled High Speed Automatic Segmenting Machine adopts microcomputer controlling , regulate the speed by frequency conversion, photoelectric tracking, step motor controlling fixing length system, material feeding displacement compensation tracking system, automatic counting, alarming, can set output times and so on.

Final Product

Please Choose

Advertising & Promotional Materials
Customized E-commerce Packaging
Labeling
Personal Care Packaging
Janitorial Packaging

Primary Materials

Please Choose

Paper
Film
Stickers

Machine Speed

Please Choose

500 time/min

Production Capacity

Compare

Product Introduction

It is with the features of high speed, low power, high precision, stable working, reliable working, full function, easy operation and so on .

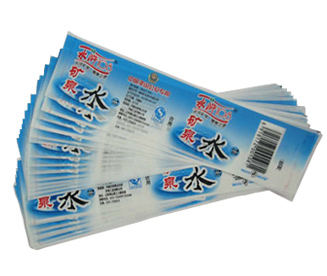

The machine is suitable for roll material cutting into fixed length, tracking cutting, and it is an ideal machine of horizontal cutting for label, printed bags, printed film, hot shrink film, paper and undried adhesive products.

Specifications

effective width	350mm
working frequency	500r/min (according to the material)
range of length	1~999mm
position precision	±0.2mm
working power	AC 50Hz 220V
total power	1.5Kw
whole weight	780Kg
overall dimension（LWH）	Machine: 1500820900mm
overall dimension（LWH）	Controlling carbine: 460X280X720mm
