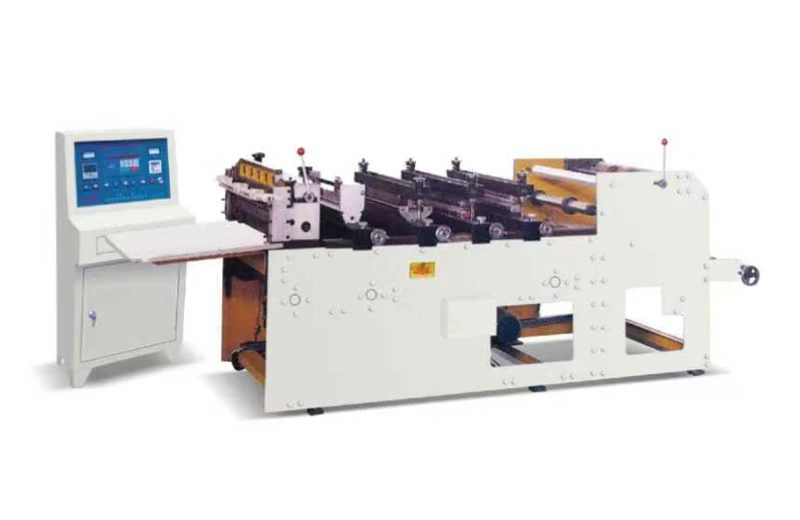

Microcomputer Controlled Multifunctional Sealing & cutting Machine

FD series Sealing and Cutting Machine is applied to the automatic sealing and cutting of flexible packing composite bags.

Final Product

Please Choose

Customized E-commerce Packaging
Food Pouch Packaging
Personal Care Packaging
Janitorial Packaging

Primary Materials

Please Choose

Film
Metallic Film

Machine Speed

Please Choose

30-200 time/min

Production Capacity

Compare

Product Introduction

This machine has the features of microcomputer selfcontrol conversion speed regulating, photoelectric tracing, counting, temperature selfcontrol high position stop,etc.According to customers' requirement, other devices for punching, tearing, single film bag sealing, can be installed.

Specifications

Model	FD-35W	FD600W
Speed of bag making	30-200 time/min	30-200 time/min
Width of bag making	20-350mm	20-600mm
Length of bag making	30-400mm	30-400mm
Positioning precision	±0.5mm	±0.5mm
Power	3.5KW/4.5KW	3.5KW/4.5KW
Weight	1050KG	1250KG
Dimension	3500×1050×980mm	3500×1250×1050mm
Voltage	50Hz 380V/220V	50Hz 380V/220V
