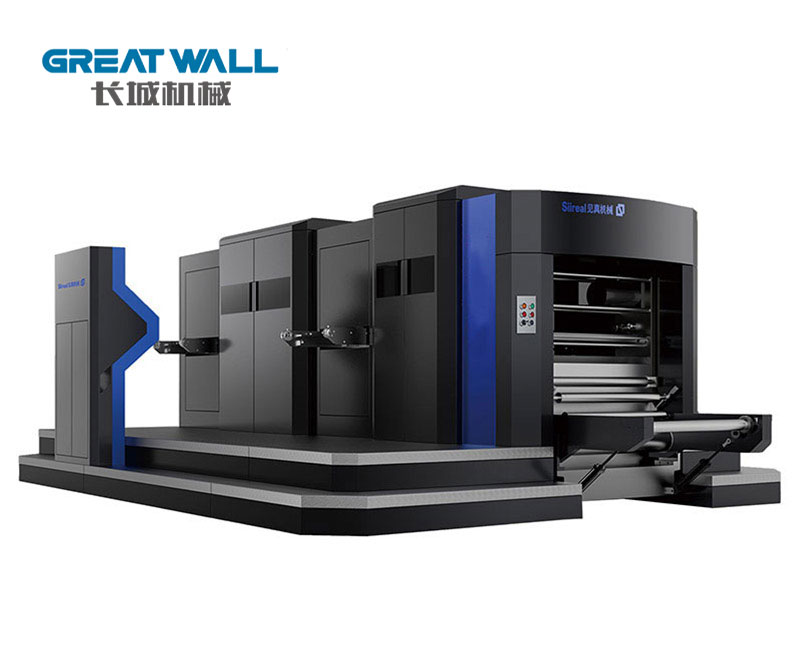

1150mm Automatic Roll Stamping and Die Cutting Machine

1150mm Automatic Roll Stamping and Die Cutting Machine
1150mm Automatic Roll Stamping and Die Cutting Machine

1150mm Automatic Roll Stamping and Die Cutting Machine

Type

ZJTM-1150

Stamping accuracy

≤±0.15mm

Max. stamping speed

110 times/min

Max. stamping pressure

320 T

Max. stamping width of paper

1120*640mm

Min. stamping width of paper

400*360mm

Suitable paper weight

100g-500g

Total power

32KW

Overall dimension

8600*2400*2300mm

Weight

15T

Inquire Now

Product information

product description

         The roll stamping and die cutting machine is a generation product of our company’s technological improvement and independent innovation. As the rapid development of the Internet has led t o the development of personalization, the machine has the following features: ①.save labor; ②.save material; ③. Reduce the errors. The equipment can be applied to the Industry: shoe boxes, gift boxes, pencil cases, shirt  boxes, sock boxes, milk bags , red packets, couplets ,wine boxes ,and so on.



Brief Introduction

  1. The main part adopts worm, worm gear, rotating and driving each connecting rods to complete the running. High stability and low mechanical noise.
  2. The main motor is with high quality multi function vector digital display converter, automatic speed regulation; it adopts PLC programming control technology, working precisely.
  3. With Touch panel, Chinese –English display, can realize man-machine interaction.
  4. It adopts Original imported Innovance servo motor and synchronic belt from Germany, make the machine running and transmission stable, accurate positioning, high accuracy.
  5. There are horizontal and vertical two directions for stamping, fast, accurate and stable.
  6. Can reduce the costs substantially, and improve the efficiency.



Sample

Aokan sample
