Width of material

1300mm

Diameter of material

φ800mm

Diameter of rewinding

φ600mm

Inner diameter of paper core

3’’/76mm(optional:  6’’ / 152mm)

Slitting speed

10-400m/min

Tolerance speed

≤0.1mm

Min. width of producing

15mm

Total power

15KW

Weight

4500kg

Overall dimension

2300mm*4300mm*1900mm

Inquire Now

Product information

Usage:

GW-1300S Servo Controlled High Speed Slitting Machine applies  to slit cellophane, PET, OPP, CPP, PE, PVC and computer security labels, electronic computers, optical materials, film roll, and foil roll, all kinds of paper rolls, film and printing of various materials. , etc



Main Mechanical Configuration:

1.Main body unit

⑴.Machine’s main body adopts cast iron and steel structure. (Cast iron after secondary operation and setting treatment.)

⑵.Main driving roller adopts seamless steel pipe (after tempering, surface hardening, chrome plated, mirror surface, dynamic balance treatment)

⑶.Material guide rollers adopts steel rolls (aluminum alloy) and rubber roll (nitride-butadiene rubber)

⑷.  Driving mode of main body and rewind shafts adopt synchronizing wheel and belt.

2.Unwinding Unit

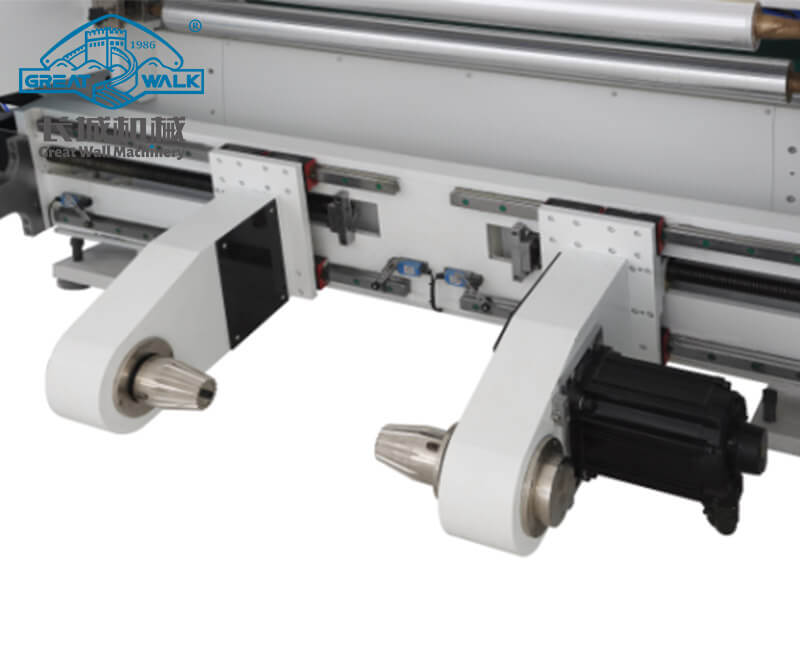

⑴.Unwind unit adopts one-piece structure, shaft less feeding.

⑵.It adopts removable bracket, the moving device is linear guide.

⑶.Non-axial Air pressure and get way with Air Chuck, who is caught taking raw materials fast, easy loading, single-person operation

⑷.1 set bias adjustable device can fine tune left and right, forward and backward through hand wheel.

⑸.Unwind tension actuator is magnetic brake power, which is from Ningxia.

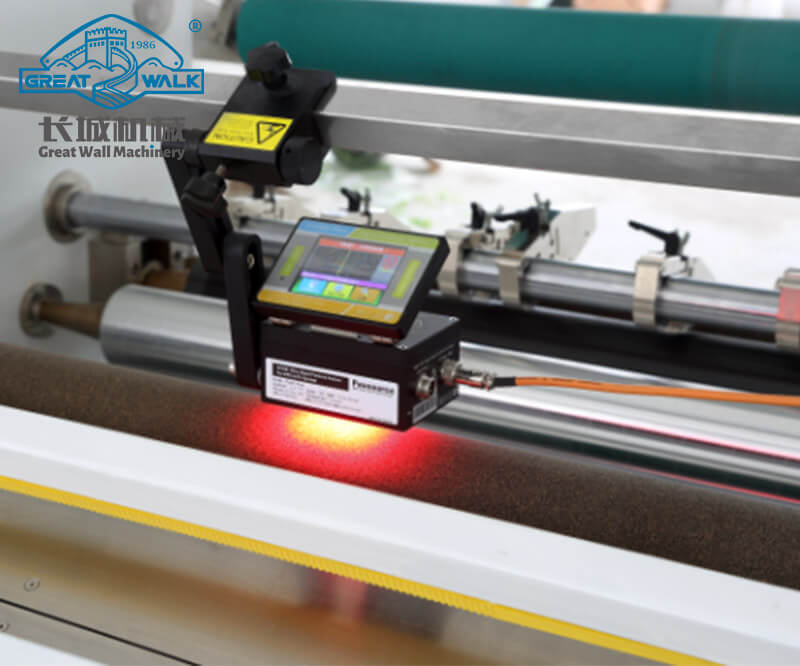

⑹.EPC uses PAUSOURCE brand corrective device, it can achieve guide function by material’s edge

3.Rewinding Unit

⑴.Shafts adopt 3 inch pneumatic fall slip shaft which is controlled by proportional valve.

⑵.Lock mode adopts pneumatic control.

⑶.Rewind tension’s actuator is Germany brand FESTO proportional valve

⑷.  Rewind press rollers can be provided by customers demand

⑸.  Slitting knives are controlled automatically (10 sets).  (Circle knife is optional).

⑹.  Equipped with a vacuum-type waste edge exclusion system, use the strong force adsorbs the waste edge out away. (Waster rewinder is optional)

⑺.  Equipped with a discharge rack which can provide a larger diameter of the finished product. Simple and efficient to operate and save time for the next feed.

4.Electrical equipment unit:

⑴.Main motor inverter adopts 1 pc Chinese brand BSD vector inverter.

⑵.Main motor adopts 1 pc Chinese brand BSD vector motor.

⑶.Rewind motor inverter adopts 2 pcs Chinese brand BSD vector inverters.

⑷.  Rewind motor inverter adopts 2 pcs Chinese brand BSD vector motors.

⑸.  LPC adopts analog control. Driving by servo motor and through CCD.

⑹.  Adopts imported PLC to achieve accurate and stable control, true color touch screen display to enable simple and beautiful images. Interactive parameter setting the environment, eliminating the complicated configuration can start the job: The user pre-start only need to input the material thickness, width, density, diameter and speed parameters, and the next will be done automatically by a computer calculation to complete.



Standard configuration:

Main motor driving (1 pcs)

BSD

Rewinding servo driving (2 pcs)

BSD

Touch screen

weinview

Corrective device

Pausource

PNEUMATIC ELEMENT

AIRTEC

Main Bearing

NSK, Japan

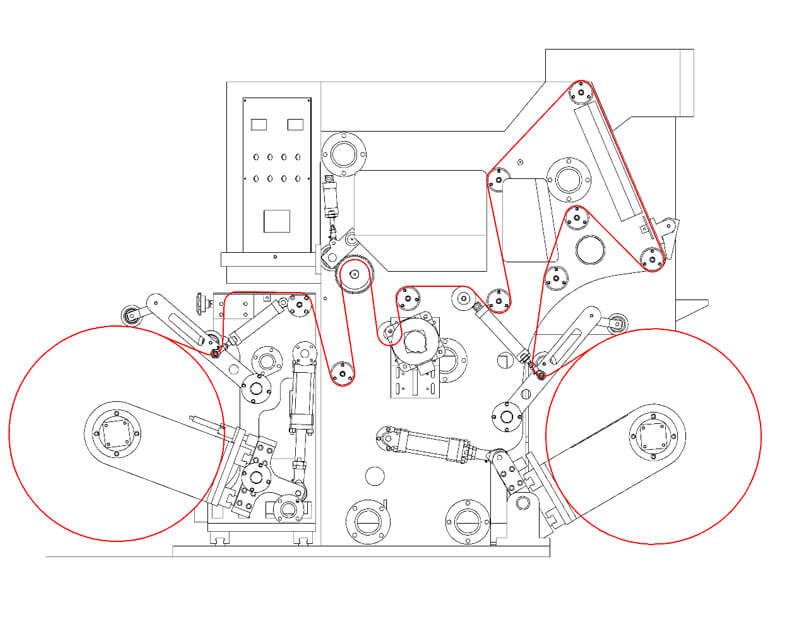

Mechanical floor plan
