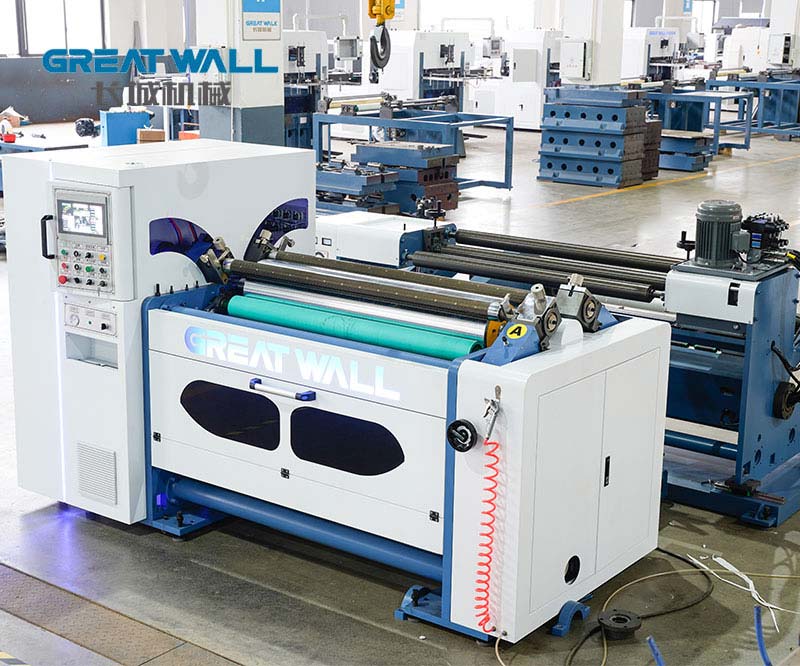

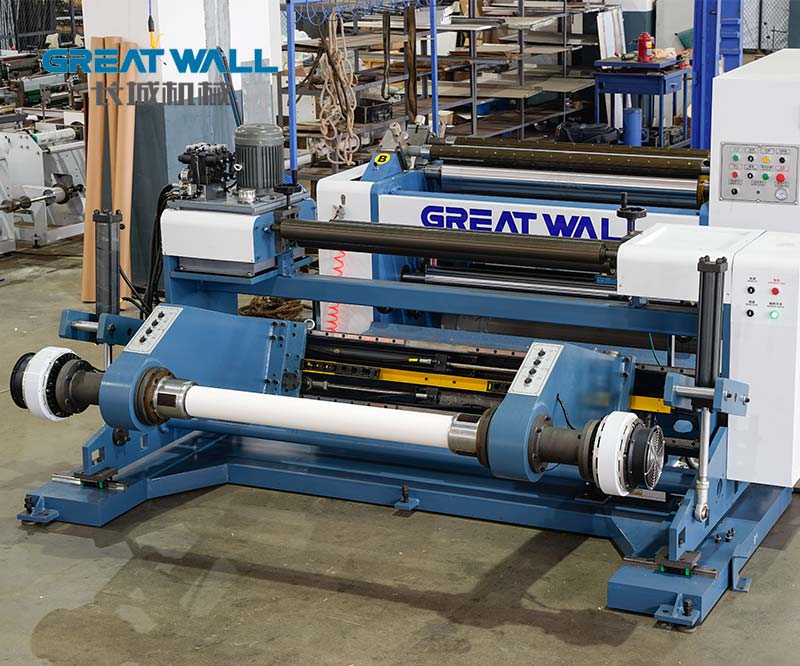

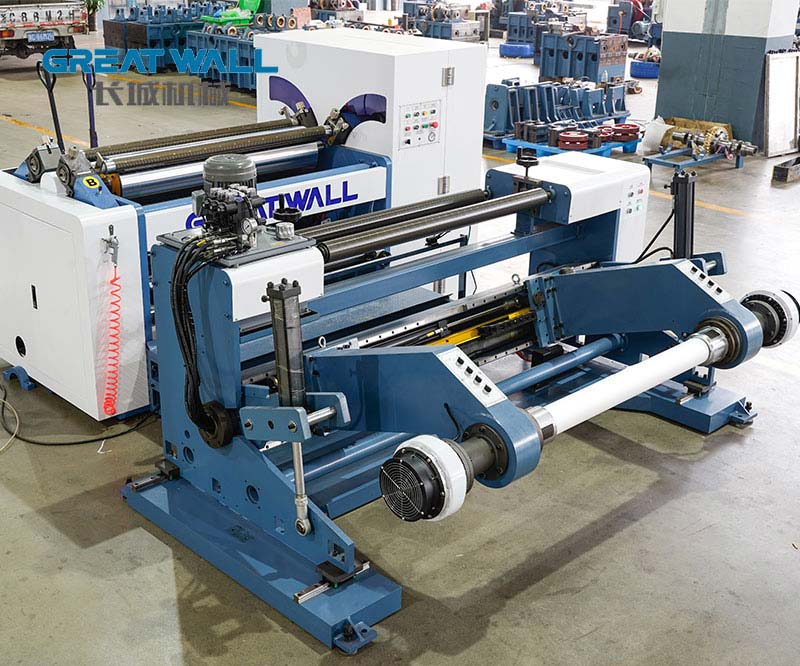

Surface Crimp Slitting Machine

Surface Crimp Slitting Machine
Surface Crimp Slitting Machine
Surface Crimp Slitting Machine
Surface Crimp Slitting Machine
Surface Crimp Slitting Machine
Surface Crimp Slitting Machine
Surface Crimp Slitting Machine

Surface Crimp Slitting Machine

Type

GW-800B

GW-1100B

GW-1300B

GW-1600B

Max. unwinding width

900mm

1100mm

1300mm

1600mm

Max. unwinding diameter

φ1400mm

φ1400mm

φ1400mm

φ1400mm

Max. rewinding diameter

φ600mm

φ600mm

φ600mm

φ600mm

Min. slitting width

5mm

5mm

5mm

5mm

Slitting speed

450m/min

450m/min

450m/min

450m/min

The total power

10kw

12kw

14kw

18kw

Weight of machine

1400kg

1600kg

1800kg

2000kg

Overall dimension

2450*3500*1650mm

2750*3500*1650mm

3050*3500*1650mm

3350*3500*1650mm

Inquire Now

Product information

The machine is suitable for kinds of jumbo roll materials, such as the films, electronic optical films, web paper, special paper, non-woven fabrics, aluminum foils, PVC/PET protective film,etc. It adopts back to back slitting and rewinding, It is an ideal equipment for slitting small specifications of materials.



Usages and Characteristics

1.The main motor adopts servo motors, stable in high speed.

2.The unwinding adopts the ultrasonic/CCD correction, the rewinding adopts two servo motors

3.It is with the features of  the PLC auto-meter counting, alarm when stopping

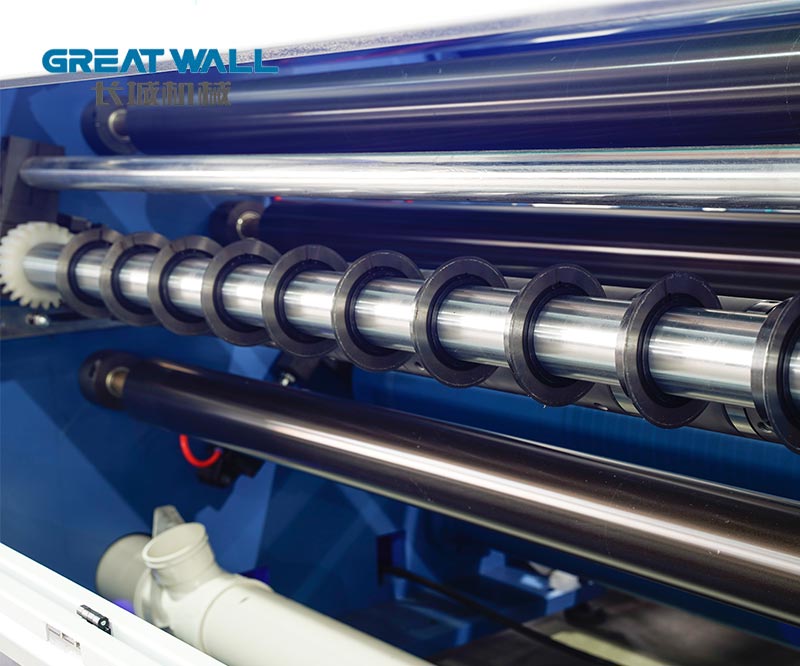

4.It adopts the round knife/flat knife slitting ,automatic discharge of waste edge of high-pressure fan.
