PLC Controlled Slitting Machine with Tension Control (350mmin)

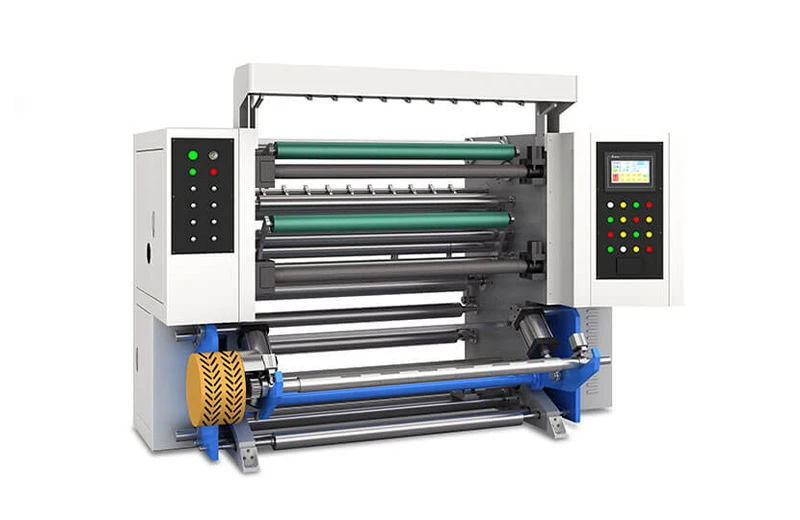

GW-1300M PLC Controlled Slitting Machine with Tension Control (350mmin) applies to slit cellophane, PET, OPP, CPP, PE, PVC and computer security labels, electronic computers, optical materials, film roll, foil roll, all kinds of paper rolls, film and printing of various materials. , etc.

Final Product

Please Choose

Advertising & Promotional Materials
Customized E-commerce Packaging
Food Pouch Packaging
Personal Care Packaging
Janitorial Packaging
Printing Industry

Primary Materials

Please Choose

Paper
Film
Metallic Film

Machine Speed

Please Choose

350m/min

Production Capacity

Compare

Product Introduction

The machine adopts PLC centralized control, and control the tension, speed ,meter count , correction and so on according to different slitting technology. The machine has the functions of stable tension, start and buffer, stop and loose proof, fixed slitting, the operation is easy. The rewinding axe and drawing roller adopts frequency motor.

The tension of the unwinding and rewinding can be adjusted flexible, much more convenient for the slitting of different types roll paper and film.

The rewinding adopts air shaft, ensure the fast loading and unloading.

Specifications

Model	GW-1300M
Material thickness range	0.012-0.15mm
Slitting width	0-1300mm
Unwinding diameter	800mm (max.)
Rewinding diameter	450mm (max.)
Slitting speed	350m/min(max.)
EPC accuracy	±0.15mm
Total power	≈30kw
Power supply voltage	AC380V（three phase）,50HZ
Equipment dimension	274515501950mm
Equipment weight	≈3500kg
