High Speed Slitting Machine GW-1400Z/1600Z/1800Z

High Speed Slitting Machine GW-1400Z/1600Z/1800Z
High Speed Slitting Machine GW-1400Z/1600Z/1800Z
High Speed Slitting Machine GW-1400Z/1600Z/1800Z

High Speed Slitting Machine GW-1400Z/1600Z/1800Z

suitable material

for paper rewinding and slitting

Material thickness range

30-300g

effective width of equipment

1400mm/1600mm/1800mm

Unwinding diameter

Max. 1600mm

Rewinding diameter

Max. 1600mm

Unwinding tension range

10-600 N

Deflection correction method

edge tracing

Correction accuracy

±0.3mm

unloading method

cylinder discharge to ground

Rewinding motor

16 kw

blowing edge fan

2.2 kw

Total power

20 kw

Total weight

9000 kg

Inquire Now

Product information

USAGE AND FEATURES

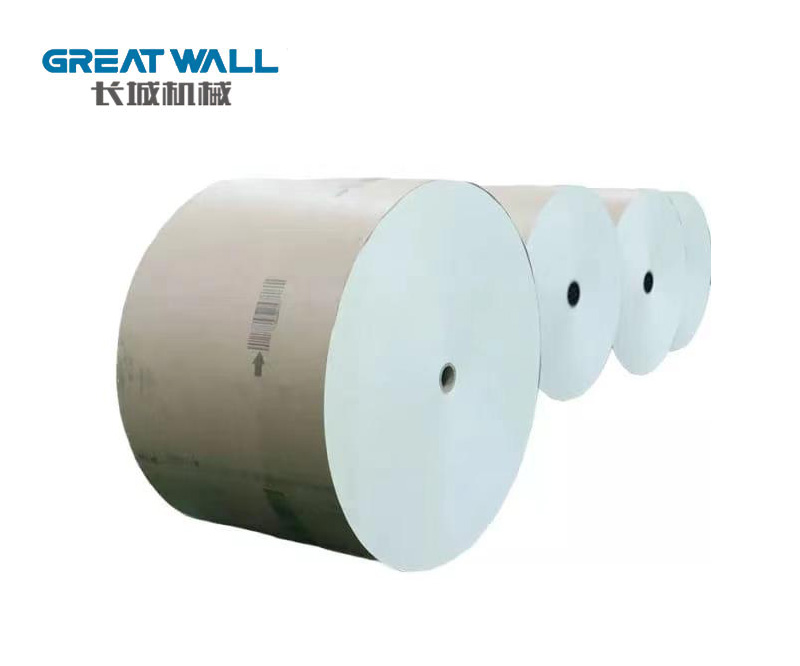

The slitting machine is suitable for slitting and rewinding of various super large roll materials such as: laminated paper, carbonless paper ,cigarette packet paper, kraft paper , cellophane, ticket paper, double-sided adhesive, white paper ,PVC plastic and other roll materials.

The slitting machine adopts PLC touch screen control, automatic paper tension and center surface rewinding.

The main machine of the slitter adopts frequency conversion vector motor control to keep balanced operation in acceleration. Automatic meter counting alarm function.

The rewinding adopts single-axis air expansion shaft rewinding structure, and the finished product is automatically hydraulically unloaded to the ground.

The unwinding adopts automatic correction system, so that irregular materials can be slit normally.

The waste edge adopts blowing air to discharge waste.

The unwinding adopts hydraulic shaftless automatic loading device.
