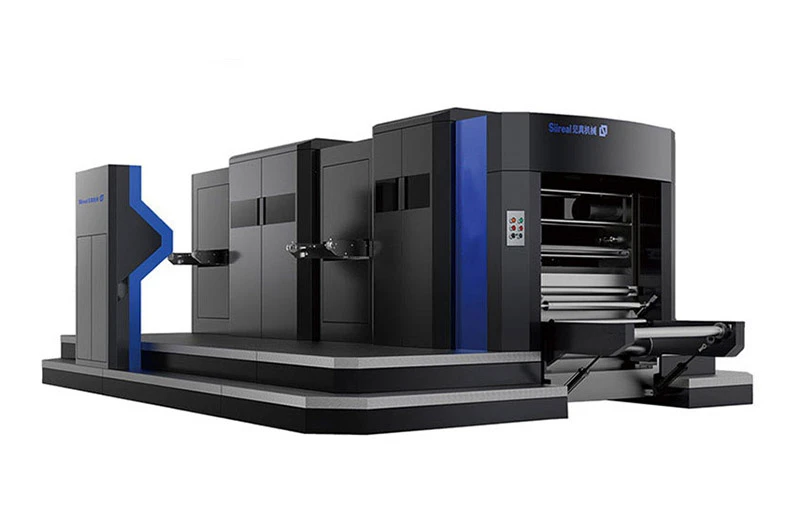

Product Introduction

The main part adopts worm, worm gear, rotating and driving each connecting rods to complete the running. High stability and low mechanical noise.

The main motor is with high quality multi function vector digital display converter, automatic speed regulation; it adopts PLC programming control technology, working precisely.

With Touch panel, Chinese –English display, can realize man-machine interaction.

It adopts Original imported Innovance servo motor and synchronic belt from Germany, make the machine running and transmission stable, accurate positioning, high accuracy.

There are horizontal and vertical two directions for stamping, fast, accurate and stable.

Can reduce the costs substantially, and improve the efficiency.

Specifications

Type	ZJTM-970	ZJTM-1150
Stamping accuracy	≤±0.15mm	≤±0.15mm
Max. stamping speed	110 times/min	110 times/min
Max. stamping pressure	320 T	320 T
Max. stamping width of paper	940*550mm	1120*640mm
Min. stamping width of paper	400*360mm	400*360mm
Suitable paper weight	100g-500g	100g-500g
Total power	32KW	32KW
Overall dimension	860024002300mm	860024002300mm
Weight	14T	15T

Features and advantages

Worm Gear Structure

Perfect worm wheel and worm transmission system ensures the powerful and steady pressure and makes the cutting accurately while the machine runs with high speed, has features of low noise, smooth running and high cutting pressure. Main base frame, moving frame and top frame are all adopts high strength Ductile Cast Iron QT500-7, which has features of high tensile strength, anti-deformation and anti-fatigable.

Lubri cation system

Adopts forced lubrication system to ensure main driving oil supply regularly and reduce frication and prolong the machine life, machine will shut down for protection if oil pressure is low. The oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil.

The main part

The die-cutting force is provided by a 7.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced. Pneumatic clutch brake: through adjust the air pressure to control the driving torque, low noise and high brake performance. The machine will shut down automatically if overload happened, response sensitive and fast.

Electrical control pressure

Accurate and fast to achieve die-cutting pressure adjustment. The pressure is automatic adjusted through the motor to control the four feet by HMI. It is very convenient and accurate.
