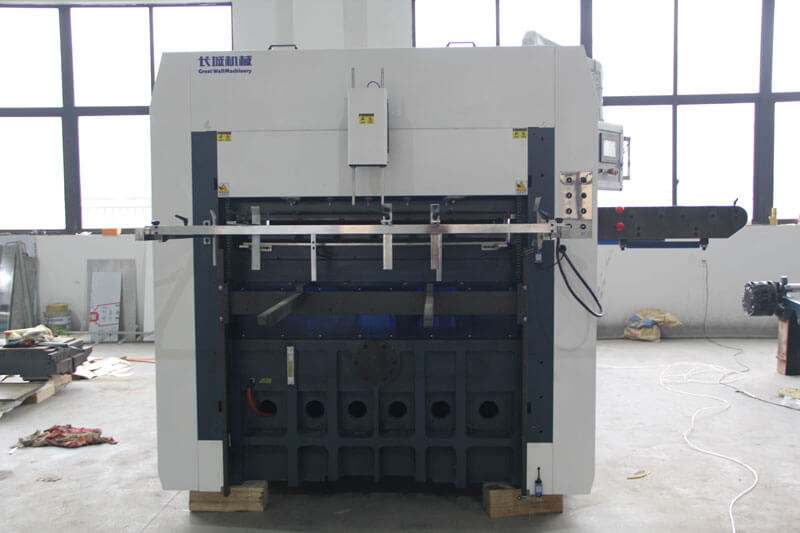

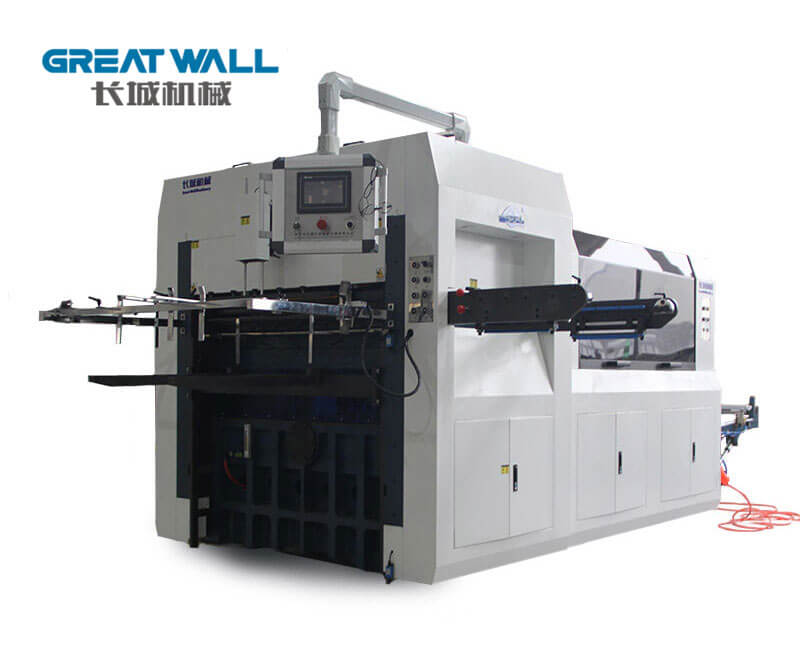

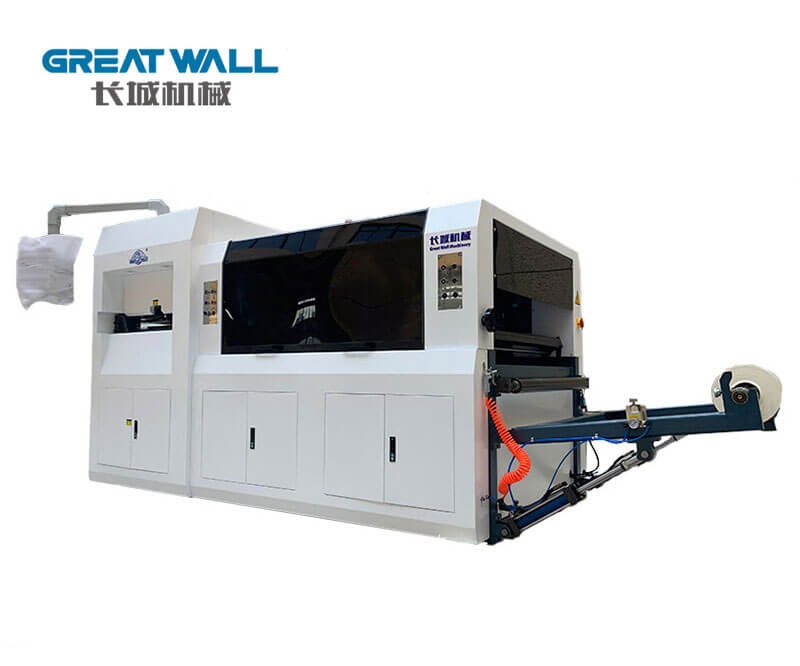

GW-970 Roll Die Cutting Machine

GW-970 Roll Die Cutting Machine
GW-970 Roll Die Cutting Machine
GW-970 Roll Die Cutting Machine
GW-970 Roll Die Cutting Machine

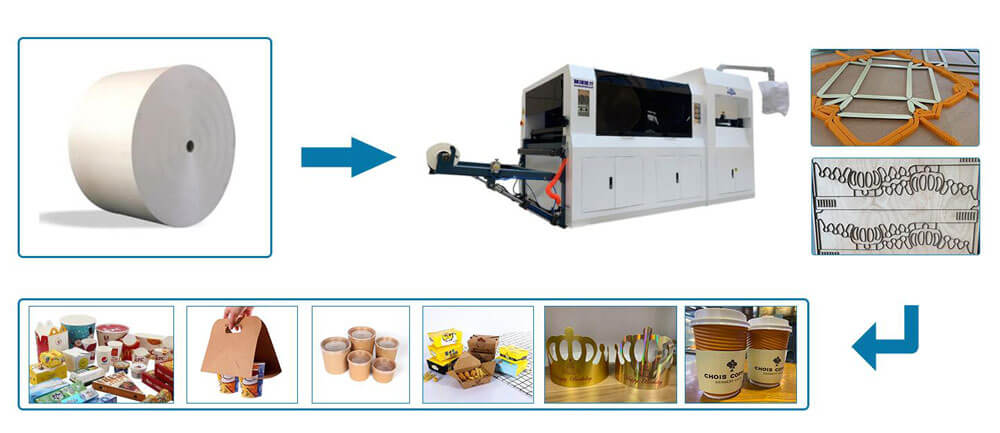

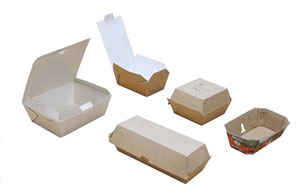

Sample of Rolling Die Cutting Machine



GW-970 roll die cutting machine is widely used in the area of the roll printing, packaging, paper cups and so on .It is suitable for kinds of cigarette boxes, medical boxes, envelope, paper cups, paper bowels, gift bags and the other paper and plastic products. The main electric part and opponents of the machine adopts imported ones, It adopts the structure of worm gear, can make the products of high quality, low depletion, high security. The machine controls the feeding automatically, color mark tracking, and die cutting accurately, knife plate locking pneumatically, easy operating and changing.



Main Technical Parameters

Cutting Precision

±0.1mm(white paper)

Rated Cutting Speed

120-180times/min

Max Cutting Pressure

320T

Max Cutting Paper Size(W×L)

9400mm*510mm(W×L)

Min Cutting Paper Size(W×L)

400mm*350mm (W×L)

Suitable Paper Weight

100g-500g

Total Rate Of Machine

16Kw

Overall Dimensions

4.6m*2.8m*2.3m (L×W×H)

Total Weight

7.5T

Working air source

Air pressure:0.6 Mpa, working air:0.3m³/min



sample

sample

sample

sample

sample

sample

sample

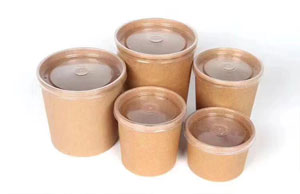

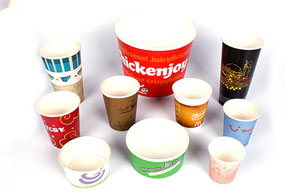

Paper Cup Samples

sample

sample

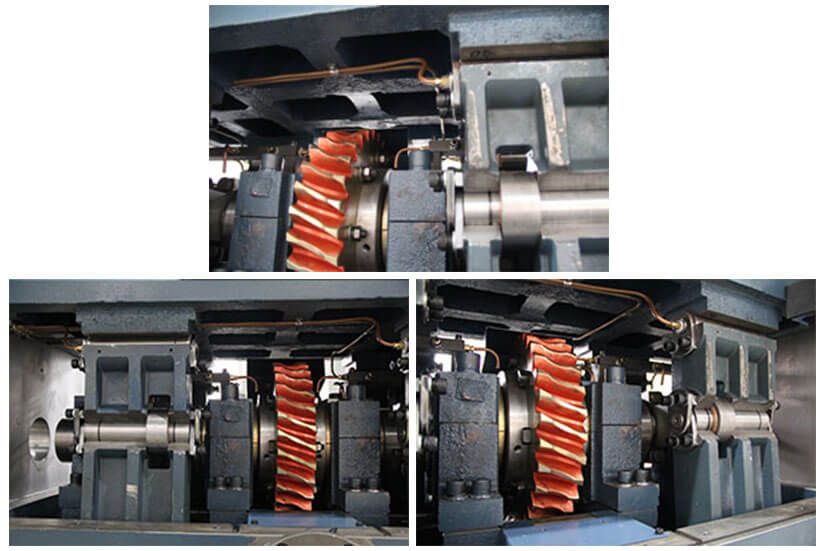

Worm Gear Structure

Perfect worm wheel and worm transmission system ensures the powerful and steady pressure and makes the cutting accurately while the machine runs with high speed, has features of low noise, smooth running and high cutting pressure.

Main base frame, moving frame and top frame are all adopts high strength Ductile Cast Iron QT500-7, which has features of high tensile strength, anti-deformation and anti-fatigable.

Equipment Display

Equipment Display

Equipment Display

 Lubri cation system

Adopts forced lubrication system to ensure main driving oil supply regularly and reduce frication and prolong the machine life, machine will shut down for protection if oil pressure is low. The oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil.

Equipment Display

Equipment Display

Equipment Display

 The main part

The die-cutting force is provided by a 7.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.

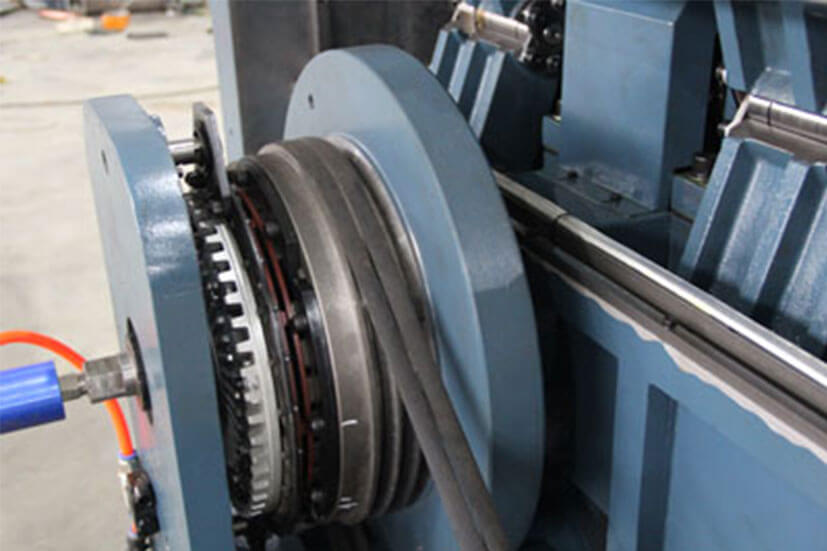

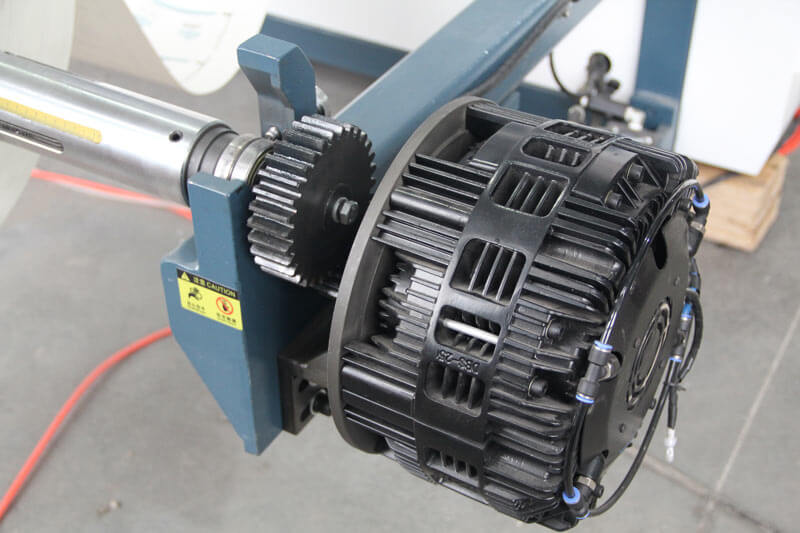

Pneumatic clutch brake: through adjust the air pressure to control the driving torque, low noise and high brake performance. The machine will shut down automatically if overload happened, response sensitive and fast.

Equipment Display Equipment Display

Electrical control pressure

accurate and fast to achieve die-cutting pressure adjustment. The pressure is automatic adjusted through the motor to control the four feet by HMI. It is very convenient and accurate.

Equipment Display Equipment Display

Track

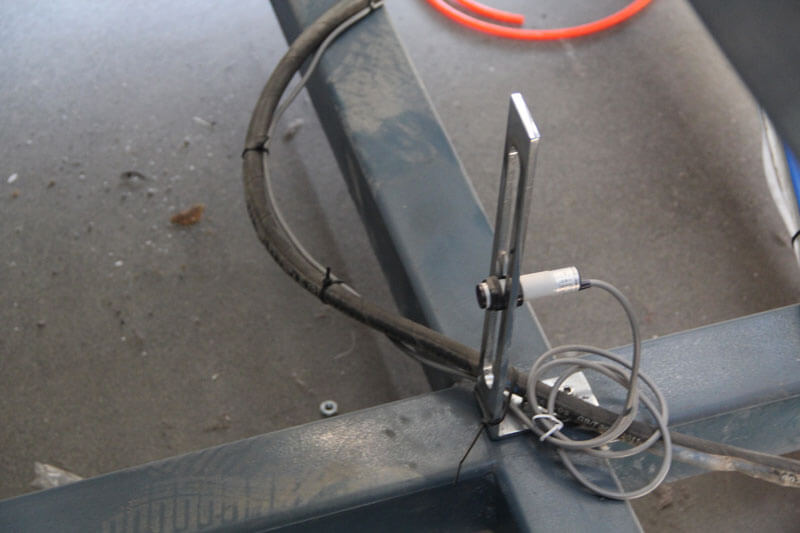

It can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures. Simply set the feed length though the micro-computer controller to die-cut the products without words and figures.

Equipment Display

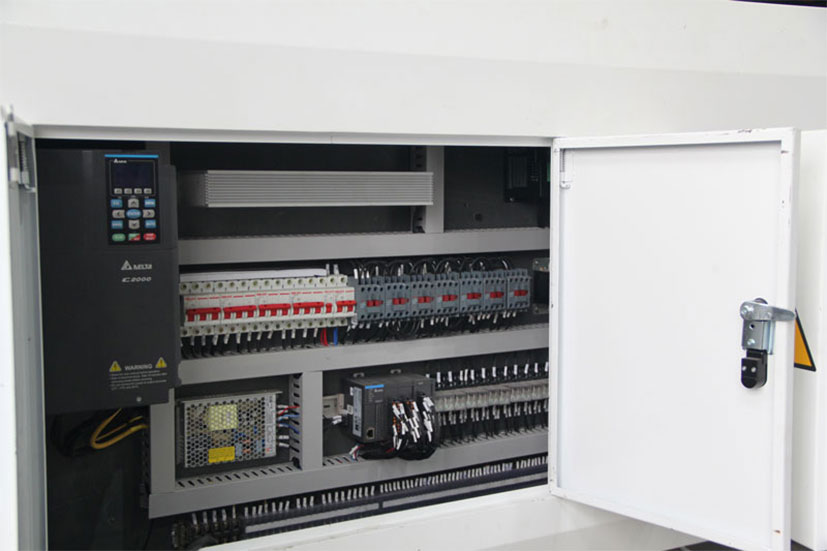

Electrical box

Motor: Frequency converter controls the main motor, with features of low energy and high efficiency.

PLC and HMI: screen display the running data and status, all of the parameter can be set through the screen.

Electrical control system:adopts micro computer control,encoder angle detect and control, photoelectric chase and detect, achieving from paper feeding,convey, die-cutting and delivering process automatic control and detect.

Equipment Display

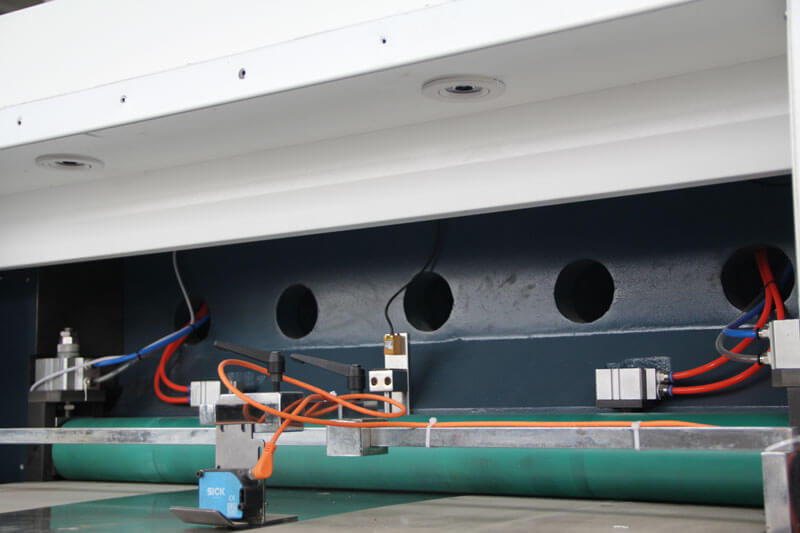

Correction unit

This device is controlled by motor, which can fix and adjust the paper in a correct position(left or right)

Equipment Display

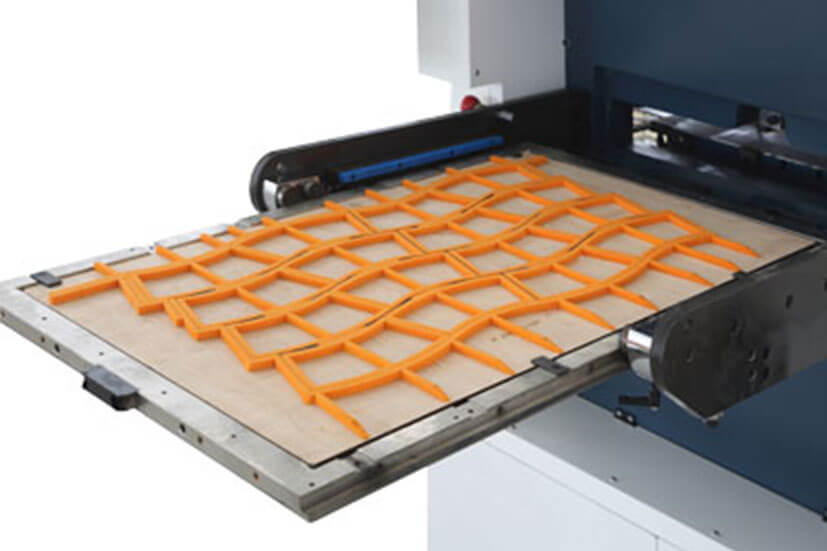

Die cutting department

Die cutting department adopts pneumatic lock version of the device to avoid come off from the machine.

Die cutting plate: 65 Mn steel plate heating treatment, high hardness and flatness.

Die cutting knife plate and plate frame can be taken out so that it can save plate-changing time.

Equipment Display Equipment Display

Paper blocked alarm

the alarm system makes the machine stop when paper feeding blocked.

Equipment Display

Unwinding unit

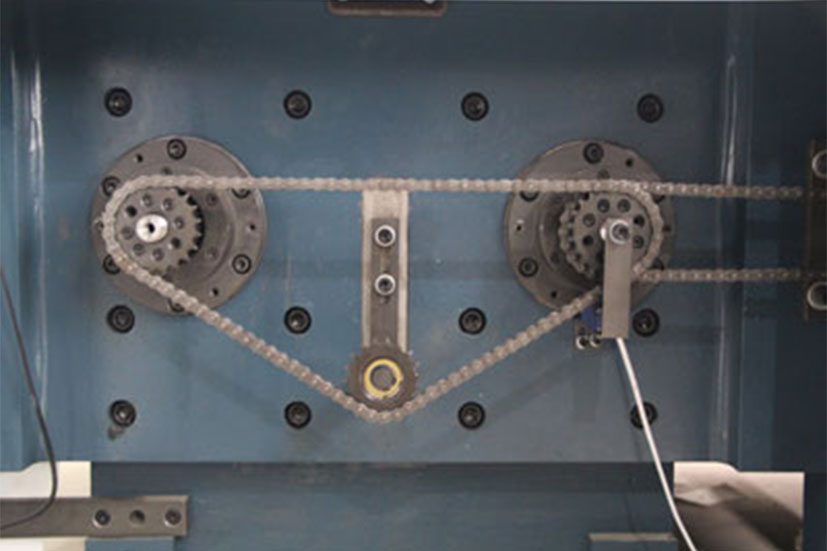

Adopts chain type pneumatic roller unwind, tension controls unwind speed ,and that is hydraulic, it could support at least 1.5T, Max. roll paper diameter is 1.6m.

Equipment Display

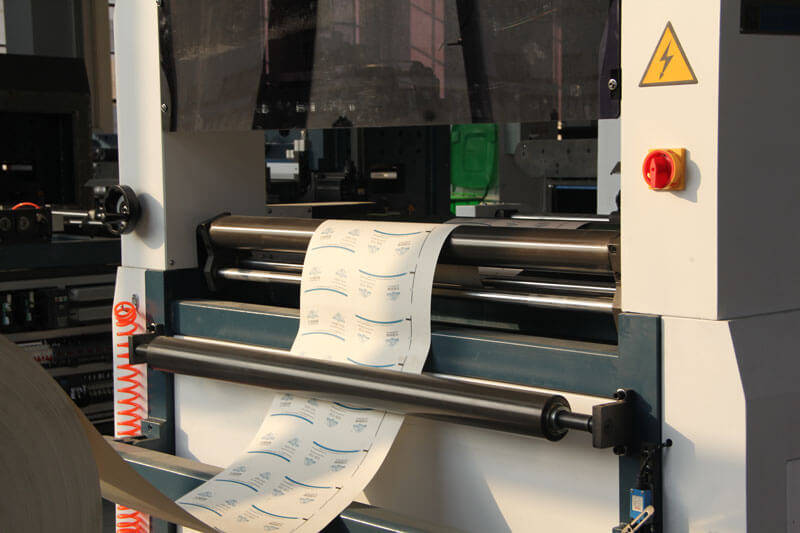

Load material

Electric roll material loading, which is easy and fast. The two rubber covered rollers are controlled by traction motor, so it is very easy to make paper go forward automatically.

Equipment Display

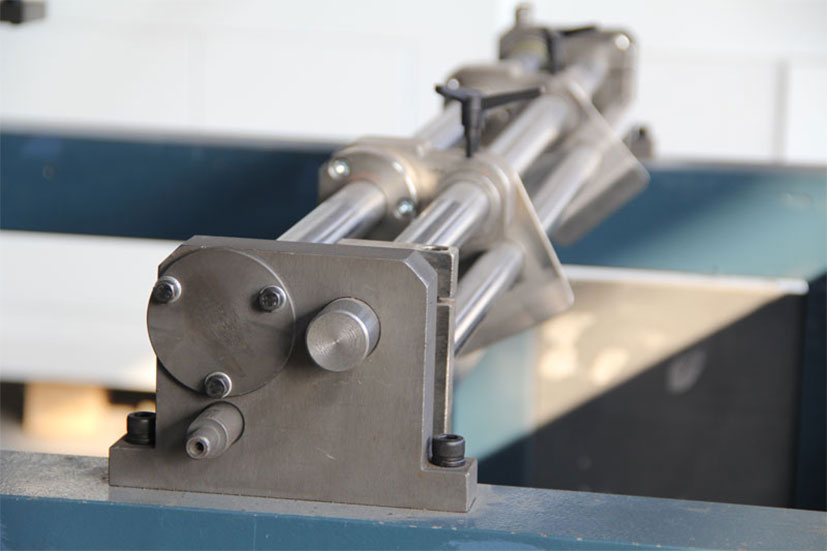

Paper leveling unit

Automatically fold and flatten the cornering materials at the paper core. It realized the multistage adjustment of the folding degree. No matter how bent the product is ,it can be flatten or refolded towards other directions.

Equipment Display

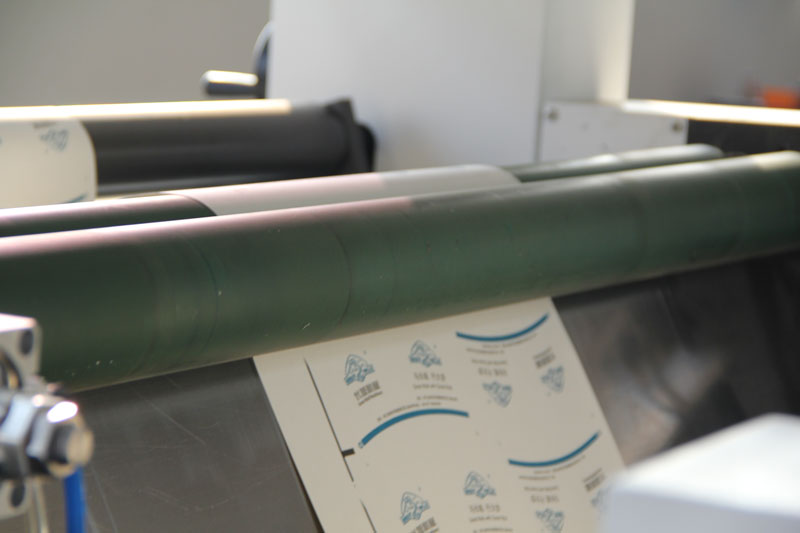

Feed material

the photoelectric eye tracking system assures the synchronization of material feeding and die cutting speed.

Equipment Display

Delivery unit

By the action of the entity induction switch, finished product will be automatically lowered down to remain the height of the pilling paper unchanged, during the whole die-cutting process, manual paper-taking is not needed.

Equipment Display
