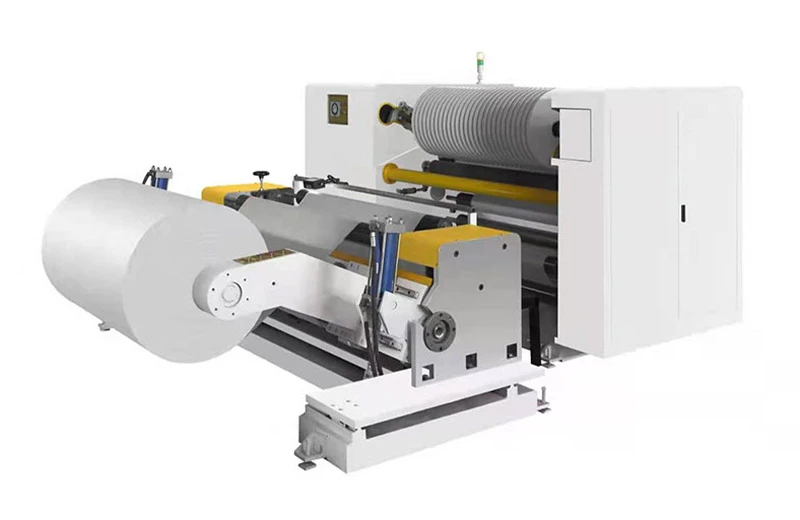

Surface Rolling Film Slitting Machine

The machine is suitable for kinds of jumbo roll materials, such as the films, electronic optical films, web paper, special paper, non-woven fabrics, aluminum foils, PVC/PET protective film,etc. It adopts back to back slitting and rewinding, It is an ideal equipment for slitting small specifications of materials.

Final Product

Please Choose

Advertising & Promotional Materials
Customized E-commerce Packaging
Personal Care Packaging
Janitorial Packaging
Printing Industry

Primary Materials

Please Choose

Paper
Film
Metallic Film
Textiles

Machine Speed

Please Choose

350m/min

Production Capacity

Compare

Product Introduction

The main motor adopts servo motors, stable in high speed.

The unwinding adopts the ultrasonic/CCD correction, the rewinding adopts two servo motors

It is with the features of the PLC auto-meter counting, alarm when stopping

It adopts the round knife/flat knife slitting ,automatic discharge of waste edge of high-pressure fan.

Specifications

Type	QFJ-800C	QFJ-1100C	QFJ-1300C	QFJ-1600C
Max. unwinding width	900mm	1100mm	1300mm	1600mm
Max. unwinding diameter	φ1400mm	φ1400mm	φ1400mm	φ1400mm
Max. rewinding diameter	φ600mm	φ400mm	φ400mm	φ400mm
Min. slitting width	5mm	5mm	5mm	5mm
slitting speed	350m/min	350m/min	350m/min	350m/min
The total power	10kw	12kw	14kw	18kw
weight of machine	1400kg	1600kg	1800kg	2000kg
overall dimension	245035001650mm	275035001650mm	305035001650mm	335035001650mm
